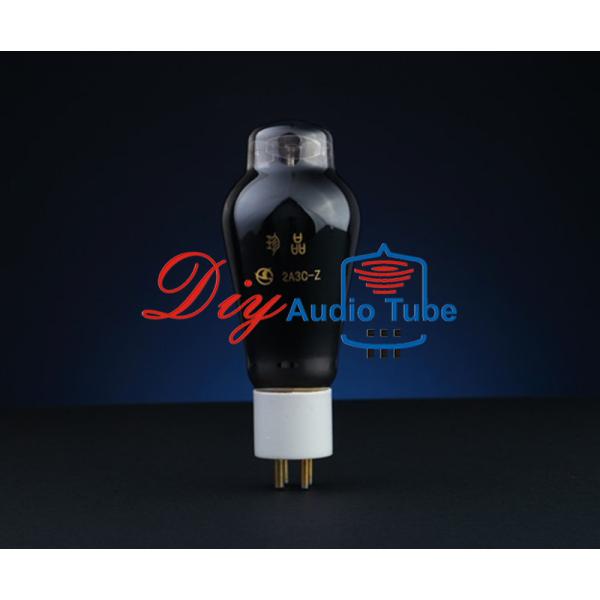

DIY Type Electronic Vacuum Tube Plate Voltage 250 Volts Shuguang 2A3C-Z

Name: DIY Type Electronic Vacuum Tube Plate Voltage 250 Volts Shuguang 2A3CZ
Brand: Shuguang
Price: 1 USD

Wholesale DIY Type Electronic Vacuum Tube Plate Voltage 250 Volts Shuguang 2A3C-Z from china suppliers

Brand Name : Shuguang

Model Number : 2A3C-Z

Certification : CE/ROHS/ISO9001:2008

Place of Origin : China

Payment Terms : Paypal, T/T, Western Union

Supply Ability : 1000pcs/month

Packaging Details : Standard box

Place of Origin: Guangdong : China (Mainland)

Function : Amiplifier tube

Type : Home Amplifier

MOQ : 1pair

Brand : Shuguang

MOQ : Negotiable

Price : Negotiable

Contact Now

Shuguang 2A3C-Z vacuum tubes 2A3 Electronic Vacuum Tube Guitar Amplifier tube HIFI DIY

Amplifier-Class A1

Maximum Ratings, Design-Center Values:

Plate Voltage: 300 max.Volts
Plate Dissipation: 15 max. watts

Typical Operation and Characteristics:

Plate Voltage: 250 Volts
Grid Voltage: -45 Volts
Amplification Factor: 4.2
Plate Resistance: 800 ohms
Transconductance: 5250 umhos
Plate Current: 60 Ma
Load Resistance: 2500 ohms
Second Harmonic Distortion: 5%
Power Outmput: 3.5 Watts

Maximum Circuit Values:

Grid-Circuit Resistance

Fixed Bias 0.05 Max megohm
Cathode Bias 0.5 Max megohm

DIY Type Electronic Vacuum Tube Plate Voltage 250 Volts Shuguang 2A3C-Z

2A3 tube:
Psvane HIFI 2A3C		Psvane T-II Classic 2A3-TⅡ
Psvane T 2A3-T		Psvane T-II Premium 2A3-TⅡ
Psvane WR2A3
Shuguang Treasure 2A3C-Z		Shuguang Natural T 2A3C-T
Shuguang HIFI 2A3C		Shuguang HIFI 2A3B
